BTP-R180 POS Printer

July 26, 2021 0

BTP-R180 POS Printer

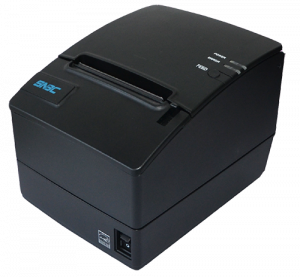

About BTP-R180 POS Thermal Printer

BTP-R180 is a high performance thermal printer, which can be widely used for real-time printing application, such as POS system, restaurant system, ATM, etc.

Product features

  •   Low noise, high printing speed
  •   Easy paper loading
  •  Easy use and maintenance
  •  Marked paper and continuous paper available
  •   Compatible with various wide paper
  •  Cutting paper automatically
  •   Cash drawer control connector
  •   ESC/POS compatible
  •  Built-in Internal Buzzer
  •   Paper saving function
  •   Low consumption design (Min. lower than 1W)

Specifications

Item

BTP-R180

Print

Print method

Direct thermal  printing

Resolution

180×180 DPII

Print width

Max.72mm

Print speed

Max.200mm/s

Driver

Windows drivers(Win2000/XP/2003/VISTA/2008/Win7/Win8); Linux CUPS, MAC

Interface

Optional   interface: Serial(RS-232), Parallel(IEEE1284), USB2.0(Full Speed), EthernetWLAN(Wi-Fi)

Cash drawer control

2 cash drawers

Barcodes
  Fonts

Graphics

Barcodes

1D:UPC-A, UPC-E,   JAN8(EAN8), JAN13(EAN13), CODE39, CODE93, CODE128, ITF, CODABAR

2D:PDF417, QR, MaxiCode, GS1-DataBar

Fonts

Font A(12×24), Font B(9×17), Kanji Font(24×24)

Character set

95 Alphanumeric, 13 types of International characters, 128×56 Graphic(including user-defined page), Traditional Chinese, Simplified Chinese, Japanese, Korean(optional)

Character   modification

Rotate(0°, 90°, 180°, 270°), enlarge(1-6x)

Flash capacity

2M/4M(selectable,  according to different font library)

Flash LOGO

Max.512Kb

Data buffer

64Kb, 4Kb, 45bytes

Paper

Paper type

Continuous paper, Marked paper

Paper width

57.5/69.5/76/80/82.5mm

Paper thickness

0.06~0.08mm

Paper roll OD

Max.83mm

Paper cut

Full cut, Partial cut

Power supply

Input

100~240V AC,50~60Hz

Output

24±5%V, 1.5A

Reliability

Print head lifetime

150Km

Cutter lifetime

1,500,000 cuts(full cut, paper thickness:0.065mm)

Environment

Operation condition

5~45ºC,  20~90%RH(40ºC)

Storage condition

-40~60ºC,  20~93% RH(40ºC)

Physics Spec.

Dimensions

195(L)×145(W)×141(H)mm

Weight

1.45Kg

Standards

Standards

CE, CB, UL, FCC
