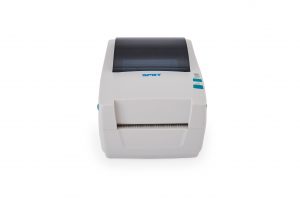

SP-TL51 Printer

About SP-TL51 Printer

Features:

1.Elegant and compact design
2.Fast, reliable and versatile thermal label printer
3.Supports BarTender, Nice Label and Dlabel label editor software
4.Supports different label size as well as its simple installation kit


Parameter:

Printing Method Thermal Line
Resolution Thermal Line 8 dots/mm
Printing Speed 127mm/s (Max)
Effective Printing Width 108mm
TPH 50km
Paper Width Max:111.5±0.5mm/Min: 40±0.5mm
Paper Type Normal Thermal Paper/ Thermal Label Paper/Fold Paper
Paper Size Max 112×Ø127mm,Min 112×Ø13mm
Paper Thickness 0.06mm~0.20mm(Normal Thermal Paper)

0.12~0.20mm(Thermal Label paper)

Driver Windows/Linux/Android
Print Font Codepage,: ANK: 9 x17 / 12 x24; Chinese: 24 x 24
Barcode UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、 CODE93、CODE128、 PDF417、QR Code、DATA Matrix
Interface USB/Serial+USB+Ethernet/USB+Bluetooth(2.0/4.0)
Power Supply DC24V±10%, 2A
Operating Temp/Humidity 5~50℃/10~80%
Outline Dimension 240x180x157mm(L×W×H)
Storage Temp/Humidity -20~60℃/10~90%
